Advantage
1.Simple to install. No need external power, no need wiring.
2.Energy saving. Low-power, solar cell, low cost
3.Environmental. No harmful substance, no pollutant.
4.Sturdy and durable. PC & Aluminum Cover, shock resistance, anti-aging, anti-corrosion
5.Stable performance. Use America ATMEL single ship to protect circuit
6.Good warning function. LED chips imported from Taiwan to achieve high quality warning
Specification
Housing Material:2.0mm thickness aluminum board
Solar panel:18V,10W single crystalline silicon solar cell
Battery:12V,7Ah colloid and maintenance free battery DIN
Led color: Yellow/red/customized.
Flash Frequency:30 times/min or customized
Can work over 120 hours or 6 rainly days after full charged
Smart controller
1.Automatic identify 12V or 24V system
2.Defense of charge protection. prevent electricity of battery to solar panel
3.Overcharge protection. prevent solar panel to overcharge battery
4.Over discharge protection. prevent a over discharge with the battery
5.Overload protection. it will turn off by itself when the electricity reach a 1.5 times of normal, and then work again about 1~2 mins later
6.Temperature correction. it will modify the charge and discharge when there is a change of the temperature the battery
7.Recovery Interval: avoid its work shaking by the utomatic-restoration characteristic of battery.

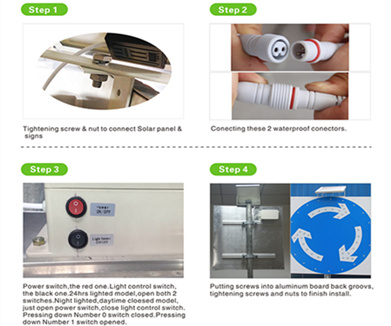

Instructions
1.Fixed the solar panel on the top of the led sign,tighten the nut.
2.connect the waterproof connectors together between solar panle and strobe light
3.Red button for power and Black button for light control
4.Fixed the bracket of led sign on the pole
Certification
Our products can meet with CE and ISO9001 certificate.Size and lighting can be customized. We promise to supply a high quality products and best service
